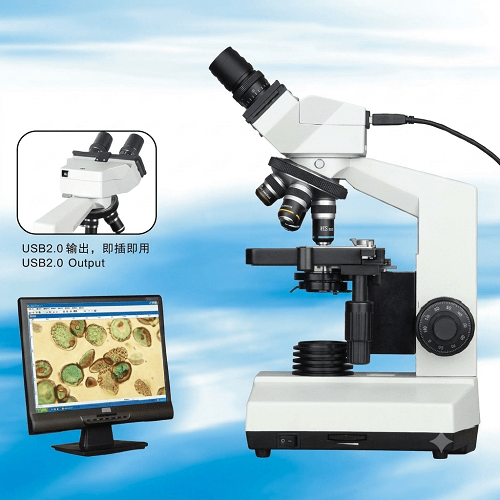

The Binocular Compound Microscope DN-107T is a reliable educational and clinical biological microscope equipped with a built-in camera, giving users dual-viewing capabilities. It is widely used in high school labs, university demonstrations, and health systems.
Optical & Mechanical Specifications
- Head: Sliding binocular head, inclined at 45°, 360-degree rotation.
- Magnification: Features a quadruple nosepiece. Paired with WF10x/18mm widefield eyepieces and achromatic objectives (4×, 10×, 40×, 100×), it offers total magnification levels from 40× to 1000×.
- Stage: Large mechanical stage (approx. 140×140 mm) with a travel range of 75×50 mm.
- Focusing: Coaxial coarse and fine adjustment with a fine division of 0.002 mm and a focusing stop to protect slides.
- Illumination: Adjustable 6V, 20W halogen lamp built into the base.
Built-In Camera & Software
- Resolution: The integrated digital camera features a 1/3” CMOS sensor, typically delivering a clear resolution of 1280 × 1024 (1.3 Megapixels up to 5.0 MP depending on the specific vendor iteration).
- Connectivity: Connects to a computer using a standard USB 2.0 interface.
- Software: Typically bundled with proprietary or standard image processing suites like ScopeImage 9.0. This allows users to capture still images, record videos, perform live measurements (lengths and angles), and edit images
