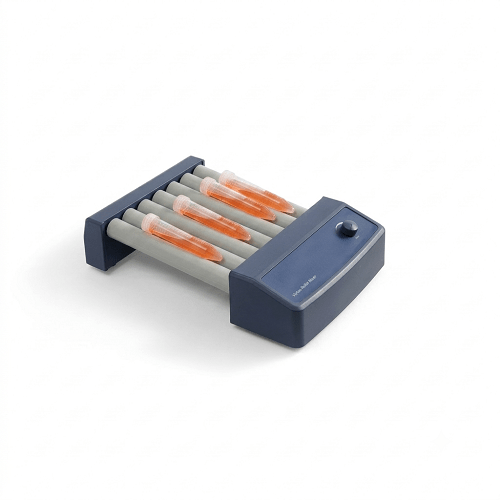

KJMR-II Roller Mixer
Features
- It can carry out two function(Roll and Swing) at same time adapted to mixing of blood samples, adhesive materials and liquid-solid suspension
- Driven by high performance DC declaration Motor, Running stable, No noise, Long lifetime
- 7 rolls, compact structure makes it less space occupation. adapted for obvious environment.
- Reasonable space between the rolls makes it fit for different size tubes.
- According to actual requirements. we can be lengthened within a certain range to fit for more tubes
Technical Data
| Operation method | Roll+ swing |
| Swing angle | 22mm+1mm |
| Rating speed | 20-80rpm |
| Max Loading weight | 1.5kg |
| Running mode | Continuous |
| Timing range | — |
| Input voltage (frequency) | AC 220V+10%(50/60Hz) |
| Permissible relative moisture | 80% |
| Output power | 6W |
| Roll length | 236mm |
| Protective class | IP21 |
| Permissible ambient Temperature | 5-50°C |
| Dimension | 410x270x100mm |
| Net weight | 4.5kg |
