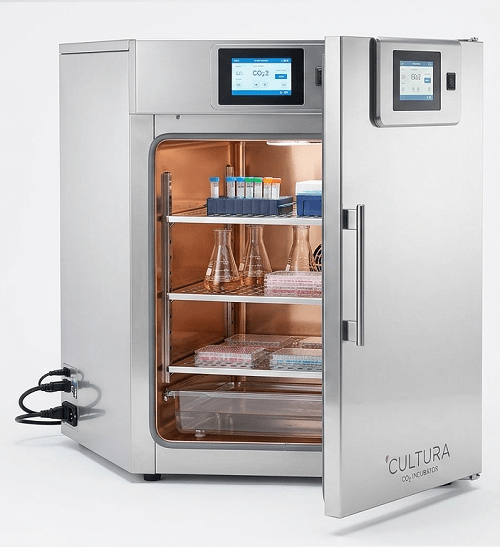

CO₂ Incubator (Cell Culture Incubator)
A CO₂ Incubator is a microprocessor-controlled laboratory incubator designed to maintain precise temperature, carbon dioxide concentration, and humidity levels for the growth of cell cultures, tissue cultures, microorganisms, and IVF applications. It provides a stable environment that closely mimics physiological conditions for in-vitro research and development.
Technical Specifications
| Parameter | Specification |
|---|---|
| Type | Air Jacketed CO₂ Incubator |
| Chamber Capacity | 150–170 Liters |
| Temperature Range | Ambient +5°C to 60°C |
| Temperature Accuracy | ±0.1°C |
| Temperature Uniformity | ±0.3°C |
| Temperature Fluctuation | ±0.2°C |
| CO₂ Control Range | 0–20% |
| CO₂ Sensor | Infrared (IR) Sensor |
| CO₂ Control Resolution | ±0.1% |
| Relative Humidity | ≥90% RH (Natural Evaporation) |
| Display | LCD/LED Digital Display |
| Controller | Microprocessor Controller |
| Shelves | 3 Adjustable Stainless-Steel Shelves |
| Timer | 999 Hours or Continuous Operation |
| Sterilization | UV Sterilization System |
| Chamber Material | Stainless Steel Interior |
| Exterior Material | Powder-Coated Steel |
| Power Supply | AC 220V, 50/60 Hz |
| Power Consumption | 650–750 W |
