Specifications:
Measuring range: 0-150mm.
Resolution: 0.01mm.
Accuracy: +/- 0.02mm (<100mm), +/- 0.03mm (> 100-150mm)
Repeatability: 0.01mm.
LCD screen
Operating temperature: 5 ºC – 40 ºC
Power: 1 x 1.5V LR44 silver oxide button cell (not included)
Note: Accuracy will be affected in an environment with relative humidity greater than 80%
Package content:

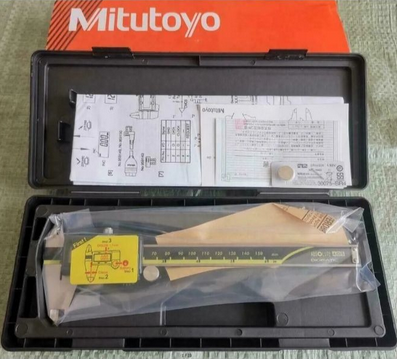

1 digital caliper
1 user manual
1 case
How a Digital Caliper Works:
A digital caliper uses a linear encoder to translate sliding jaw movement into electrical signals. The microprocessor converts these signals into numerical readings on the LCD display. Zero‑setting at any position ensures convenient differential measurements, while metric and imperial units can be toggled instantly.
Frequently Asked Questions:
Q: What is the least count of a digital vernier caliper?
A: Most models offer a least count (resolution) of 0.01 mm (0.0005 in).
Q: How do I calibrate my digital caliper?
A: Close the jaws fully, press the zero button to reset display, and verify against a gauge block if available.
Q: Can I switch between metric and imperial units?
A: Yes, digital calipers allow instant toggling between millimeters and inches.
