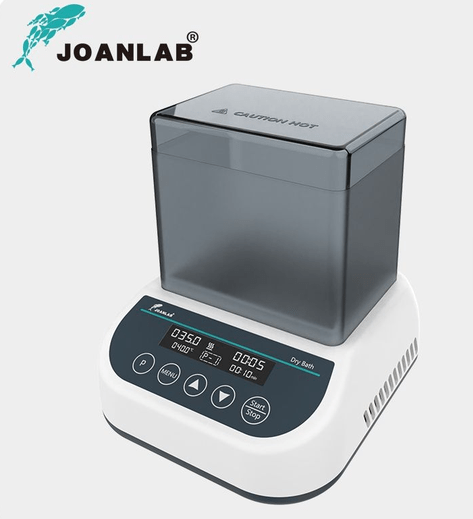

Dry Bath Incubator – Model DB100
The DB100 Dry Bath Incubator is a compact, microprocessor-controlled laboratory heating device designed for precise temperature control and incubation of samples in microtubes, centrifuge tubes, blood tubes, and microplates. It is widely used in molecular biology, microbiology, clinical diagnostics, environmental testing, and biochemical laboratories.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | DB100 |
| Temperature Range | Ambient +5°C to 100°C |
| Temperature Stability | ±0.5°C |
| Display Resolution | 0.1°C |
| Heating Time | ≤12 minutes (25°C to 100°C) |
| Timer Range | 1 second to 23 hours 59 minutes |
| Power Consumption | 96 W |
| Power Supply | AC 100–240 V, 50/60 Hz (DC 24 V output) |
| Module Dimensions | 110 × 75 × 32 mm |
| Instrument Dimensions | 170 × 160 × 102 mm |
| Display Type | LED Digital Display |
| Temperature Control | Microprocessor Controlled |
| Safety Features | Over-temperature protection and alarm system |
Standard Features
- High-precision microprocessor temperature control
- Rapid heating with excellent temperature uniformity
- Real-time temperature display
- LED digital interface for easy operation
- Audible alarm upon program completion or fault detection
- Automatic recovery after power interruption
- Interchangeable aluminum heating blocks for various tube sizes
- Compact benchtop design with low power consumption
- Temperature calibration function for enhanced accuracy
Optional Heating Blocks
- 0.2 mL tubes × 96 positions
- 0.5 mL tubes × 48 positions
- 1.5 mL tubes × 35 positions
- 2.0 mL tubes × 35 positions
- 5 mL blood tubes × 24 positions
- 5/15 mL tubes × 12 positions
- 50 mL tubes × 6 positions
- Flat-bottom microplates
Applications
- DNA amplification and PCR sample preparation
- Enzyme reactions and serum coagulation
- Sample preservation and incubation
- Clinical diagnostics and microbiological testing
- Environmental and food testing laboratories
- Pre-denaturation and biochemical reactions
