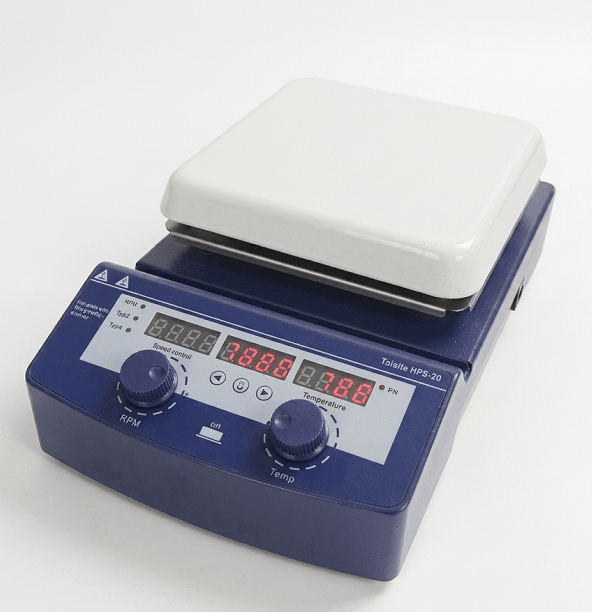

Hotplate with Magnetic Stirrer – Model HPS-20D (Taisite)
The HPS-20D Hotplate Magnetic Stirrer by Taisite is a digital laboratory hotplate stirrer designed for simultaneous heating and stirring of liquids. It is widely used in chemical, pharmaceutical, educational, environmental, and research laboratories for sample preparation, solution mixing, and reaction processes. The unit features a ceramic-coated heating plate, digital temperature and speed control, and a maintenance-free brushless motor.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | HPS-20D |
| Type | Digital Hotplate Magnetic Stirrer |
| Maximum Stirring Capacity | 20 Liters |
| Temperature Range | Ambient +5°C to 350°C |
| Temperature Stability | ±3°C |
| Speed Range | 0 – 1500 rpm |
| Speed Control | Digital |
| Temperature Control | Digital PID Controller |
| Working Plate Material | Ceramic-Coated Aluminum |
| Working Plate Size | 190 × 190 mm |
| Motor Type | DC Brushless Motor |
| Power Consumption | 600 W |
| Timer | 0 – 99.9 Hours |
| External Temperature Sensor | Optional PT100 Sensor |
| Power Supply | AC 220 V, 50/60 Hz |
| Dimensions (W × D × H) | 190 × 320 × 130 mm |
| Net Weight | Approximately 5 kg |
