Product Description

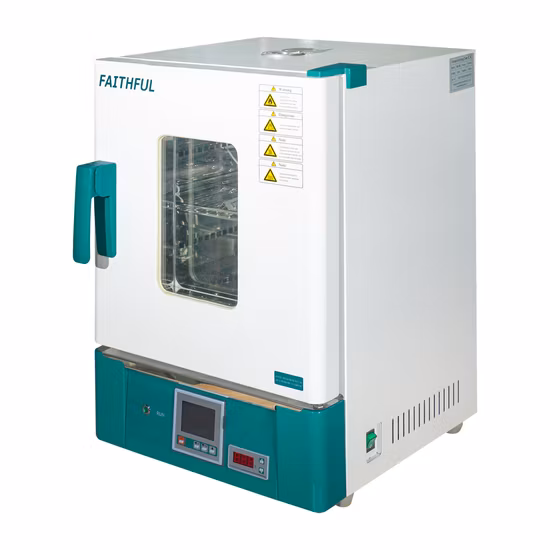

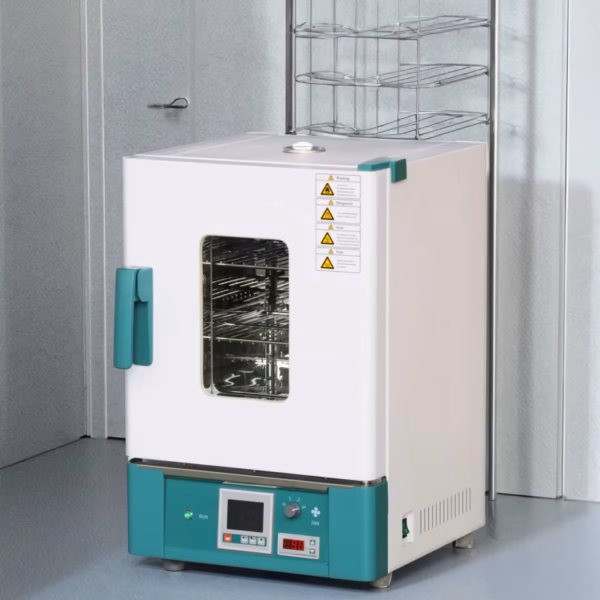

Forced Air Drying Oven
Used for drying, baking, wax, heat treatment
Characteristics:
1.Horizontal air circularly by double Air ducts, high efficiency and high Uniformity.
2.PID controller, with over-temperature protection function.
3.With fan switch,LED digital display,high temperature blast motor.
4.New anti-hot handle
WGLL-BE series have the following characteristics other than the above functions.
1. LCD temperature controller. SSR to make sure the safety
2. 4 grades speed fan, adjustable for different requirements.
3. Over-temperature protection system.
4. Independent temperature limiter.
Main Technical Parameters:
| Model | WGL-30B | WGL-45B | WGL-65B | WGL-85B | WGL-125B | WGL-230B | WGL-625B | |||||
| WGLL-30BE | WGLL-45BE | WGLL-65BE | WGLL-85BE | WGLL-125BE | WGLL-230BE | WGLL-625BE | ||||||
| Cycle Mode | Forced convection | |||||||||||
| Function | Temp. Range | RT+10-300ºC | ||||||||||
| Temp. Resolution Ratio | 0.1ºC | |||||||||||
| Temp. Motion | ±1ºC | |||||||||||
| Temp. Uniformity | ±2.5% | |||||||||||
| Structure | Inner Chamber | Mirror Stainless Steel | ||||||||||
| Outer Shell | Cold rolling steel electrostatic spraying exterior | |||||||||||
| Insulation layer | High quality rock wool board(with CE) | |||||||||||
| Heater | Stainless steel heater | |||||||||||
| Power rating | 0.8kW | 1.2kW | 1.6kW | 2.0kW | 2.3kW | 3.0kW | 5.0kW | |||||
| Exhaust hole | φ28mmtop(with function of test hole) | Rear exhaust | Top double exhaust | |||||||||
| Controller | Temp. control mode | Two temperature section PID intelligent | ||||||||||
| Temp. setting mode | Touch button setting | |||||||||||
| Temp. display mode | B model: Measuring temperature: display on the four digital tubes upper row, setting temperature: display on the lower row | |||||||||||
| BE model: Measuring temperature display on upper LCD screen, setting temperature display on the lower row | ||||||||||||
| Timer | 0-9999min(with timing wait function) | |||||||||||
| Operation function | Fixed temperature operation, timing function, auto stop. | |||||||||||
| Additional function | B model: Sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | |||||||||||
| BE model: Mechanical independent temperature limiter,4 grades 3speed adjustable-speed fan (230 and 625 model BE without fan speed adjuster),sensor deviation correction, temperature overshoot self-tuning, internal parameter locking, power-off parameter memory | ||||||||||||
| Sensor | pt100 | |||||||||||
| Specification | Inner Chamber size(W*L*H)(mm) | 310*310*310 | 350*350*350 | 400*360*450 | 450*420*450 | 500*450*550 | 600*500*750 | 660*760*1250 | ||||
| Exterior size (W*L*H)(mm) | 450*500*690 | 490*540*730 | 540*550*830 | 590*610*830 | 640*640*930 | 730*680*1250 | 890*925*1830 | |||||
| Packing size (W*L*H)(mm) | 550*585*845 | 590*625*885 | 640*635*985 | 690*695*985 | 740*725*1085 | 860*790*1400 | 1000*1080*2000 | |||||
| Volume | 30L | 45L | 65L | 85L | 125L | 230L | 625L | |||||
| Shelf number | 6 | 7 | 9 | 9 | 13 | 17 | 17 | |||||
| Load per rack | 15kg | |||||||||||
| Shelf space | 35mm | 150mm | ||||||||||
| Power rating (50/60HZ) | AC220V/3.6A | AC220V/5.5A | AC220V/7.2A | AC220V/9.0A | AC220V/10.5A | AC220V/13.6A | AC380V/7.6A | |||||
| NW/GW (kg) | 33/37 | 37/43 | 44/49 | 50/56 | 60/66 | 94/120 | 120/160 | |||||
| Accessory | Shelf | 2 | ||||||||||
| Shelf frame | 4 | |||||||||||
| optional accessories | B model: Shelf; BE model: Shelf,RS485 interface, printer, program temperature control device, remote control, wireless SMS alarm, USB data storage | |||||||||||
