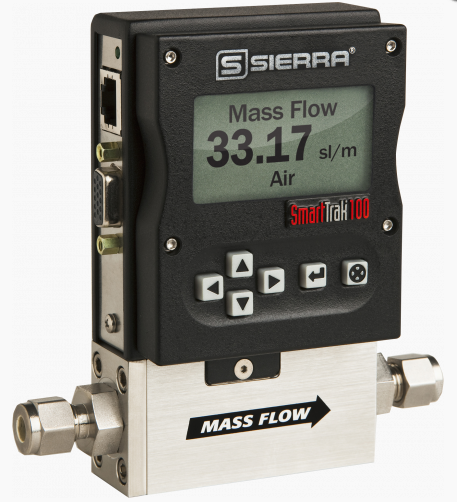

Mass Flow Meter in Pakistan

  • Direct mass flow with thermal technology +/- 0.5% full scale accuracy
  • True multi-gas digital mass flow controller
  • View and change every aspect of the instrument
  • Small footprint at 50 slpm ideal for OEMs
  • 10-point NIST calibration on primary standards
Compare
Add to wishlist
Category: Tags: ,
Description

Product Benefits

  • Ideal for OEM, industry and research
  • Patented, inherently linear Laminar Flow Element (LFE) design, advanced platinum wound capillary sensor
  • Mass flow rates up to 1000 slpm; higher upon request
  • 50 slpm (nlpm) version in a small footprint 3 inches long, 1 inch wide, 7 inches tall (76.2 mm, 177.8 mm, 25.4 mm); does not include fitting length
  • Makes drop-in replacement easy
  • User-friendly pilot module display interface is front-mounted, hand-held, or remote mounted
  • Field adjustment with multifunction pilot module display interface.  Change the following:
    • measured gas
    • flow rate
    • engineering units
    • set zero, span and full scale for each gas independently

Specifications

  • All clean gases including toxics and corrosives
  • High accuracy: +/- 0.5% of full scale
  • Accuracy: +/- 1% of full scale
  • Repeatability: +/- 0.2% of full scale
  • Flow ranges from 0-10 sccm to 0-1000 slpm (nlpm)
  • Higher and lower flow ranges available
  • Pressure to 500 psig (34.5 barg)
  • Gas/ambient temp 32°F to 122°F (0°C to 50 C)
  • Response time: 300ms time constant: 2 seconds (typical) to within ± 2% of final value (includes settling time), faster or slower available upon request
  • 24 VDC power supply
  • Seals: Viton®, Neoprene®, Kalrez®
  • 316 stainless-steel construction
  • Analog or digital signals included: RS-232, RS-485 (Multi-drop), 0-20, 4-20 mA; 0-5, 1-5, 0-10 VDC
  • Digital communications:
  • CE approved
