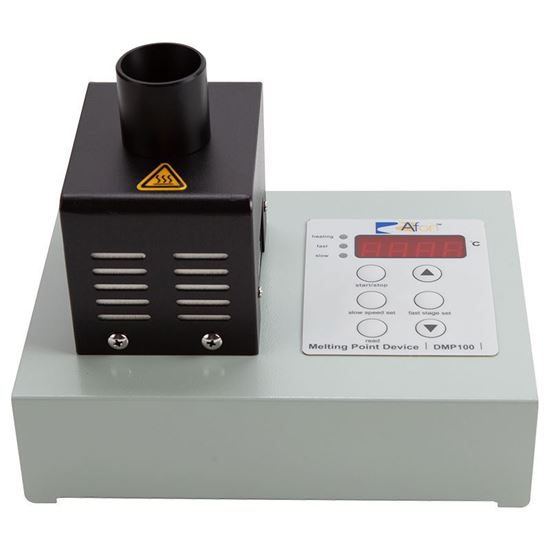

This melting point apparatus has been designed with both safety and ease of operation in mind, making it ideal for use in education. The temperature is selected, measured and displayed digitally making it accurate and negating the need for a thermometer.
The advanced CG-1839-A-10 has a 0.1° resolution as well as a variable ramp rate and hold key so that the exact melt temperature can be recorded.
Two samples can be tested simultaneously. They are viewed via a magnifying lens with clear observation aided by built in illumination. Adjustable back feet allow the unit to be operated at the optimum viewing angle. Full access to the block aids cleaning. The simple to follow instructions are printed directly on the instrument in English and most European languages for ease of use (included with each instrument).
To operate simply select a plateau temperature via the digital display and press “start”. The unit quickly heats up and remains at the selected plateau temperature until the user is ready to start the test. Insert the sample tubes and press “start”. The unit then heats at a fixed rate of 2°C per minute. When the sample is seen to melt, note the temperature on the display. Press “stop” to end heating and cool the block.
For use with 1.9mm OD tubes.
