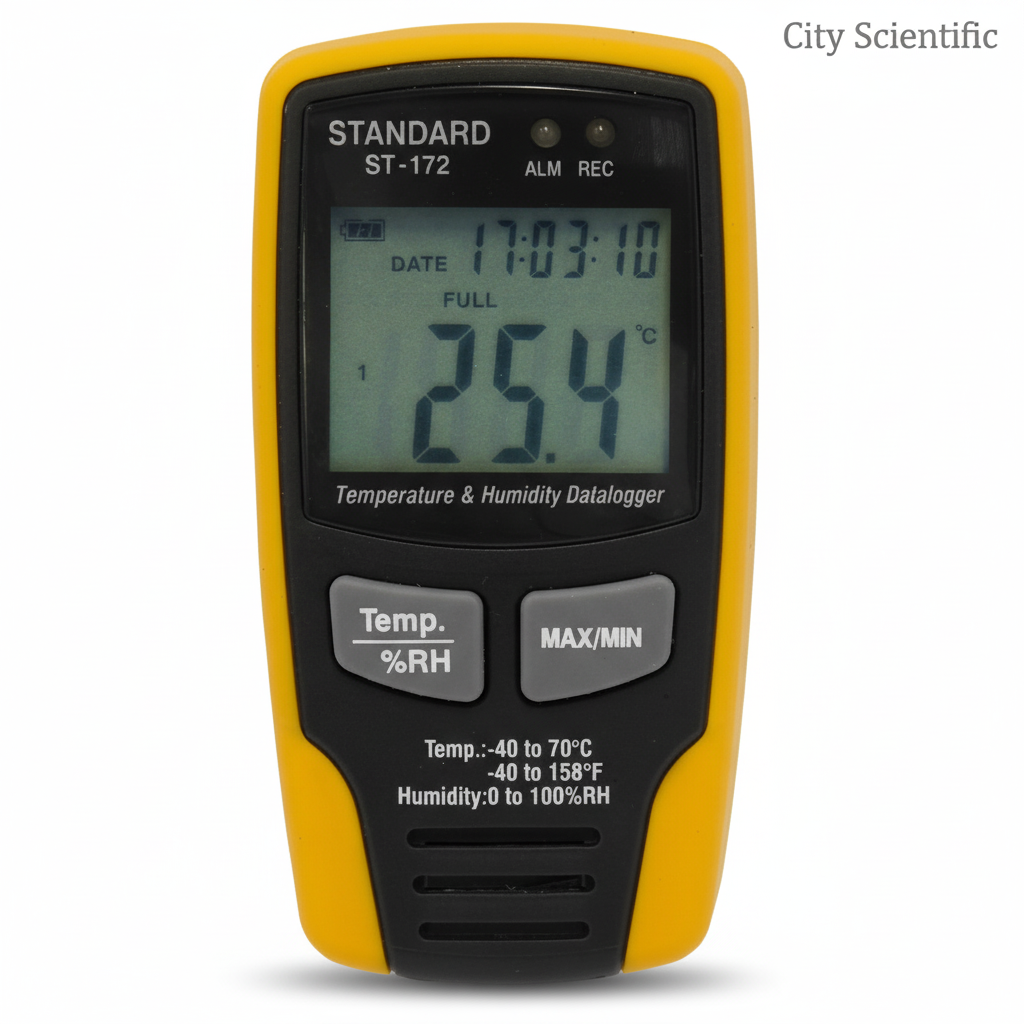

ST172 Standard
ST172 is used to monitor temperature and humidity values efficiently and conveniently for long periods of time by using the datalogger functionality. The dataloggers are saved in the logger and simply read out by your PC with USB interface. The LCD shows current readings, MAX, MIN and sign of alarm.
Features:
Memory for 32700 values.
LCD to show Some Logging information easily.
LCD to show TIME and DATE.
Freely selectable measurement cycle from 1 sec. to 24h.
Download collected data through PC’s USB.
Alarm display if user-defined maximum/minimum values are exceeded.
Analysis software used to view graph for logging data
Specification
| Measurement range | 0 to 100%RH -40 to 70°C |
| Accuracy | ±2%RH ±1°C |
| Resolution | 0.1%RH 0.1°C |
| Memory | 32,000 samples (16,000 for each temperature and humidity) |
| Measuring rate | 2 sec. to 24 hrs |
| Battery life | 3 years (typical) |
| Software Requirements | Windows 98 / 2000 / XP / Vista |
| Dimensions |
94mm(H) × 50mm(W) × 32m |
