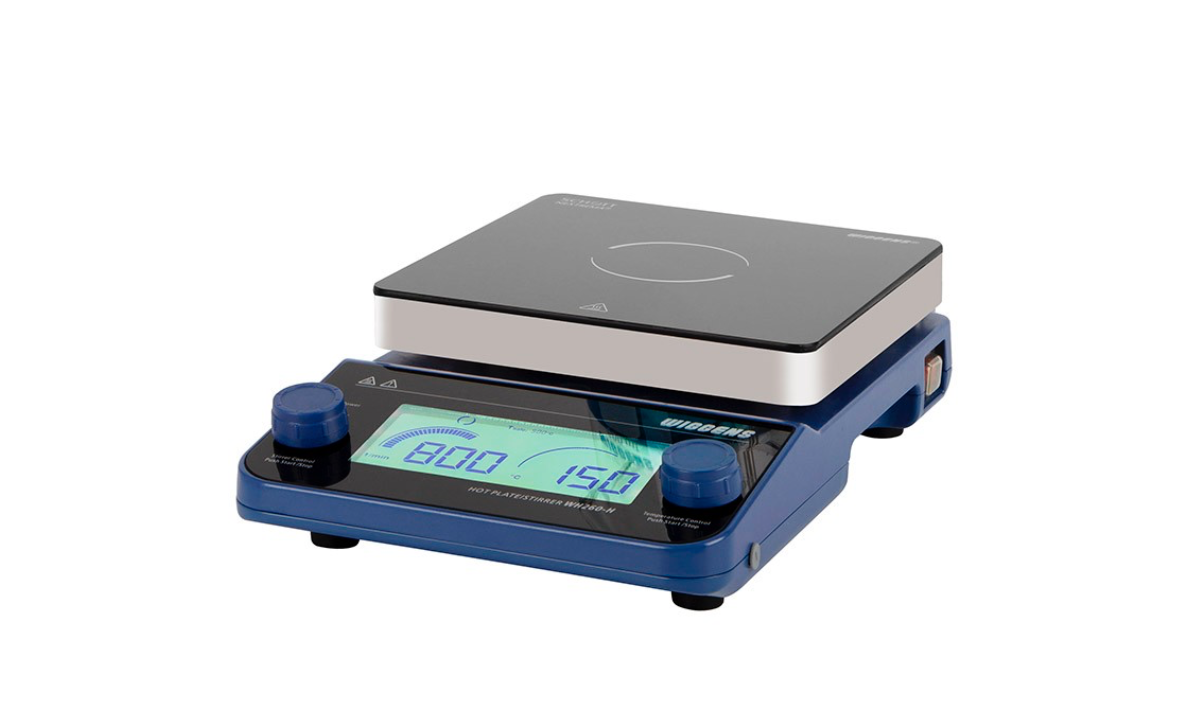

WH260-H Digital Hot Plate Magnetic Stirrer
Advanced microprocessor controlling system guarantees the reliability and temperature stability.
> Bright and clear LCD digital display and setting for the working temperature, stirring speed, working time, and safety temperature.
> Memory function for stirring speed and setting temperature, convenient for experiments with fixed conditions.
> Liquid drainage above the control board to prevent liquids from accessing the touching board and the electronics.
> Direct connection for Pt100 temperature sensor for convenient solution temperature control.
> Sealed outer shell and isolated critical parts design for enhanced longevity even in a harsh laboratory environment.
> New enhanced infrared heating element, is a type of high temperature hot plate stirrer with very high heating density, can reach a high media temperature.
> High safety protection: When exceeding the safety range of the hotplate (10-50 ℃ adjustable) , the heating can be shut off immediately and automatically for the safety protection.
> 3 sets of PID parameters, suitable for accurate control of small amount sample（small volume or specific heat）, and quick heating and stable temperature of large volume sample.
Technical Data:
| Display Mode / Control type | LCD Digital Display /Knob Control |
| Max. Set Temperature ( top plate) (℃ ) | 450 |
| Max. Set Temperature (with Pt100 sensor)(℃ ) | 300 |
| Temperature Stability (with Pt100 sensor)(℃ ) | ±1 |
| Safety Temp. (℃ ) | 50-500 adjustable |
| Stirring Speed Range (rpm) | 100~1500 |
| Stirring quantity max [L / H2O] | 20L |
| Heating Capacity (W) | 900 |
| Motor | DC brushless motor, 12W |
| Top Plate Dimensions(mm) | 180×180 |
| High Temperature Protection(△T) | 10-50℃ adjustable |
| Timer（min） | 1 – 1999 / continuous |
| Top Plate Material | Ceramic glass |
| PID Parameters | 3 sets |
| Communication | USB(COM) |
| Interface | USB-A |
