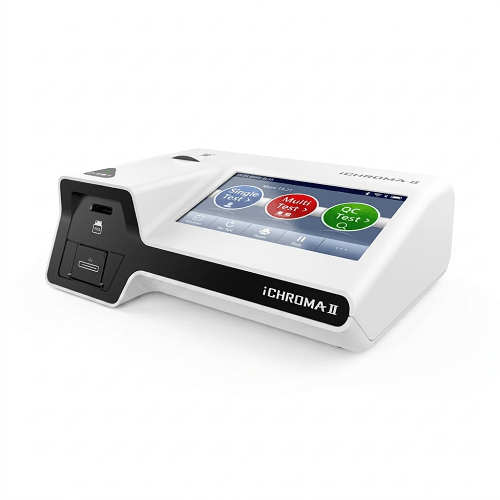

iChroma™ II – Fluorescence Immunoassay Analyzer (Boditech)
The iChroma™ II is a compact, fully automated fluorescence immunoassay (FIA) analyzer designed for rapid, quantitative, and reliable point-of-care testing (POCT). It measures various biomarkers in whole blood, serum, plasma, urine, and other samples for cardiac, diabetes, infectious disease, hormone, and inflammatory marker testing.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | iChroma™ II |
| Manufacturer | Boditech Med Inc. |
| Principle | Fluorescence Immunoassay (FIA) |
| Test Mode | Quantitative and Semi-Quantitative |
| Throughput | Up to 30 tests/hour |
| Display | 7-inch Color Touch LCD |
| Built-in Printer | Thermal Printer |
| Memory Capacity | 1,000 Patient Results |
| QC Memory | 1,000 QC Results |
| User IDs | 100 User IDs |
| ID Chip Storage | 500 ID Chips |
| Communication Ports | 4 × USB, LAN, USB OTG, SD Card Slot |
| Connectivity | LIS/HIS Compatible |
| Optional Connectivity | Wi-Fi and Bluetooth Dongles |
| Power Supply | AC 100–240 V, 50/60 Hz |
| Adapter Output | DC 12 V, 5 A |
| Battery Operation | 4 × AA Batteries |
| Dimensions (L × W × H) | 276 × 220 × 91 mm |
| Weight | Approximately 1.3 kg |
| Operating Temperature | 15°C to 35°C |
| Operating Humidity | 10–70% RH (Non-Condensing) |
