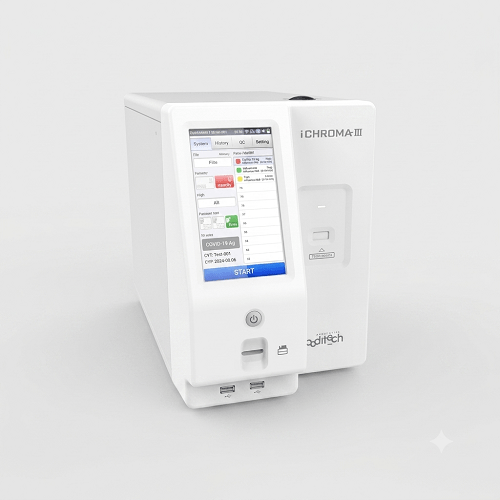

iChroma™ III – Fully Automated Fluorescence Immunoassay Analyzer (Boditech)
The iChroma™ III is a fully automated, high-throughput fluorescence immunoassay (FIA) analyzer designed for clinical laboratories and point-of-care testing (POCT). It enables simultaneous testing of multiple biomarkers with random-access operation, delivering fast, accurate, and reliable results. The system can process up to 120 tests per hour and supports a wide range of diagnostic parameters.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | iChroma™ III |
| Manufacturer | Boditech Med Inc. |
| Principle | Fluorescence and Europium Nanoparticle Immunoassay |
| Throughput | Up to 120 Tests per Hour |
| Test Capacity | Up to 12 Assays Simultaneously |
| Display | 7-inch Touchscreen LCD |
| Built-in Printer | Thermal Printer |
| Memory Capacity | 2,000 Patient Results |
| QC Memory | 2,000 QC Results |
| System Check Memory | 1,000 Records |
| ID Chip Storage | 500 ID Chips |
| Connectivity | RS-232, LAN Port, 4 × USB Ports, SD Card Slot |
| LIS/HIS Compatibility | Supported |
| Power Supply | AC 100–240 V, 50/60 Hz, 1.8 A |
| Dimensions (L × W × H) | 240 × 465 × 341 mm |
| Weight | Approximately 11 kg |
| Operating Temperature | 15°C to 35°C |
| Operating Humidity | 10–70% RH (Non-Condensing) |
| Storage Temperature | -20°C to 50°C |
