Product Overview
-

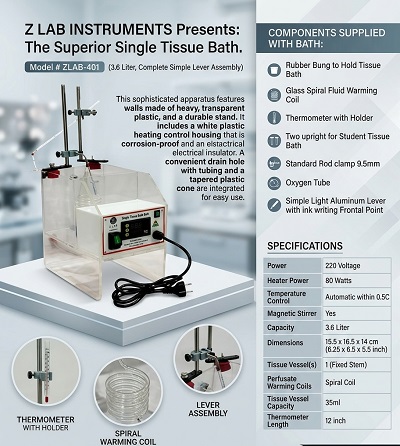

Product Name: Single Tissue Bath (3.6 Liter, Complete Simple Lever Assembly)
-
Model Number: ZLAB-401
Description & Overview
This Single Tissue Bath unit is constructed with heavy, transparent plastic walls (8 mm thick) for easy sample observation. The side panels extend downwards to double as a stable stand. The heating control housing is made of white plastic, making it corrosion-proof and electrically insulated.
It features a bottom drain hole with tubing/plug and an overflow pipe at the top edge. A tapered plastic cone in the tank bottom accommodates the soft rubber bung for the glass tissue bath stem, creating a leak-proof joint. Heating is supplied by two cartridge elements near the bottom (totaling 80 watts), with temperature regulated via a front-panel dial ($15\text{–}45^\circ\text{C}$ in $5^\circ\text{C}$ steps). Inside, a metal tube houses a sensitive thermostat sensing bead to keep water temperature within $0.5^\circ\text{C}$ of the set point. Indicator lights show power status and active heating.
Components Included
-
Rubber Bung (to hold tissue bath)
-
Glass Spiral Fluid Warming Coil
-
Thermometer with Holder
-
Two Uprights (for Student Tissue Bath)
-
Standard Rod Clamp ($9.5\text{ mm}$)
-
Oxygen Tube
-
Simple Light Aluminum Lever (with ink writing frontal point)
Specifications
-
Power: $220\text{ V}$
-
Heater Power: $80\text{ W}$
-
Temperature Control: Automatic within $0.5^\circ\text{C}$
-
Magnetic Stirrer: Yes
-
Tank Capacity: $3.6\text{ Liters}$
-
Overall Dimensions ($H \times W \times D$): $15.5 \times 16.5 \times 14\text{ cm}$ ($6.25 \times 6.5 \times 5.5\text{ inches}$)
-
Tissue Vessels per Set: 1
-
Vessel Type: Fixed Stem
-
Perfusate Warming Coils: Spiral Coil
-
Capacity per Vessel: $35\text{ ml}$
-
Thermometer Length: $12\text{ inches}$
