Student Kymograph
With Stimulator (Complete with Standard Accessories)
Model # (ZLAB-217)
Z LAB INSTRUMENTS

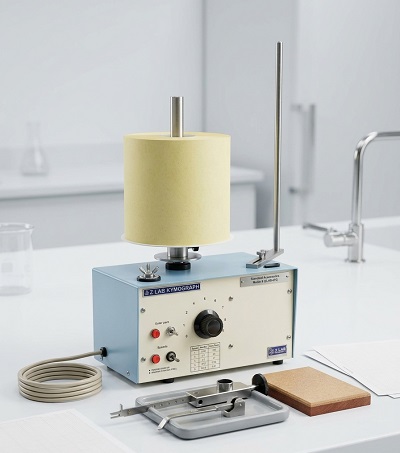

The Z LAB Student Kymograph is very reliable instrument for use in the study of physiology, pharmacology and Biological Science. There are two instrument model available and each is provided with a series of advance features. The instrument are available with or without stimulator. There is a range of accessories two suit most applications. Illustrated with the kymograph below is one suggested kit or assembly of the more popular.
Standard Accessories:
-
Kymograph Plastic Drum (6*, inches or 8*in)
-
Weight set with Hanger
-
Side Arm for assembly
-
Muscle Chamber
-
Muscle and Heart Assembly
-
Muscle and Heart Bath
-
Electrode Assembly complete with lead
-
Frog Heart Clip
-
Muscle Lever with pen
-
Heart Lever with pen
-
Pen Filler
-
Bottle of Ink
-
Thread-one Reel
-
Kymograph Charts, package of Sheets
Specifications:
-
Output Voltage: 0 to 25 V, 0 to 250 mV, 0 to 2.5 V and 0 to 25 V control by variable
-
Socket: 2 x 4 mm sockets Impedance:
-
Frequency: < 25 W at maximum output current of 250 mA
-
Mode Selection: 1 to 50 pluses per second
-
Pulse Width: Continuous, single and trigger via contact arms on spindle included
-
Cylinder: Included
-
Power: 2 watts
-
Dimensions: 255 x 180 x 135 mm (10 x 7 x 5 inch) H x D x W
-
Weight App.: 7.0 Kg (Approximately)
